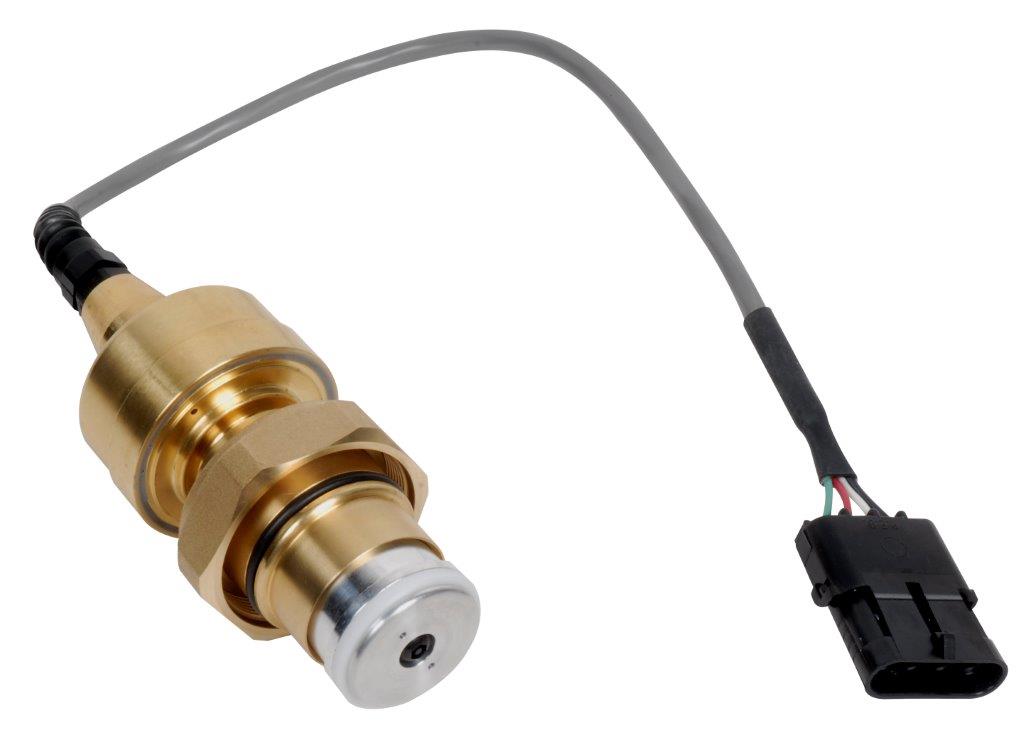

MOTOR TYPE: 2 PHASE PERMANENT MAGNET, 2 COIL BIPOLAR
SUPPLY VOLTAGE: 12 VDC, ±10%, MEASURED AT THE VALVE LEADS
PHASE RESISTANCE: 75 OHMS PER WINDING ±10%
RESOLUTION: .0000783 INCHES/STEP
PORT SIZE: DIA 1.33 IN
SAFE WORKING PRESSURE: 450 PSI MAX
AMBIENT TEMPERATURE: -40°F TO 130°F OPERATING
FLUID TEMPERATURE: 150°F MAX
