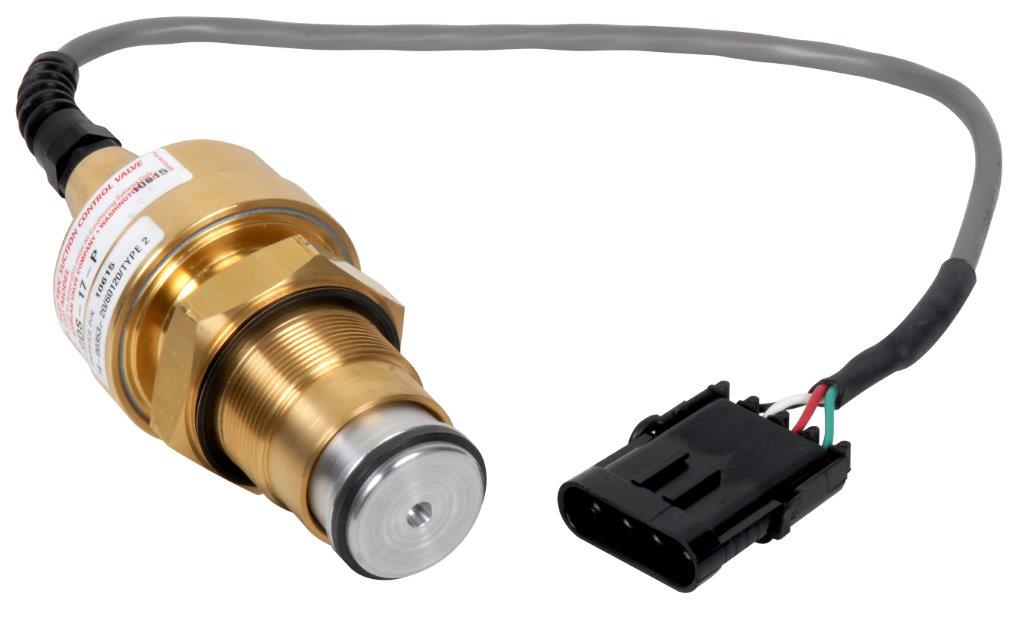

PISTON/MOTOR ASSY, STEPPER VLV

PISTON/MOTOR ASSY, STEPPER VLV

SKU 14-00353-20
UOM EA

Piston/ Motor assembly for the Stepper Motor Suction Modulation Valve (SMV) which is used to regulate the flow of refrigerant. Signals will be sent to the stepper motor inside the valve to open and close which will increases and decreases the pressure in the evaporator, and indirectly raises or lowers the temperature inside the evaporator.


Price $909.57


<p>Product Details</p>

MOTOR TYPE: 2 PHASE PERMANENT MAGNET, 2 COIL BIPOLAR
SUPPLY VOLTAGE: 12 VDC ± 10%
PHASE RESISTANCE: 75 OHMS PER WINDING ± 10%
RESOLUTION: .0000783 INCHES/STEP
PORT SIZE: DIA 28.58 MM
SAFE WORKING PRESSURE: 450 PSI MAX
AMBIENT TEMPERATURE: -40°F TO 130°F OPERATING
FLUID TEMPERATURE: 150°F MAX
