CABLE, 11/4 GAUGE (1020FT)
CABLE, 11/4 GAUGE (1020FT)
SKU
22-66651-20
UOM
EA

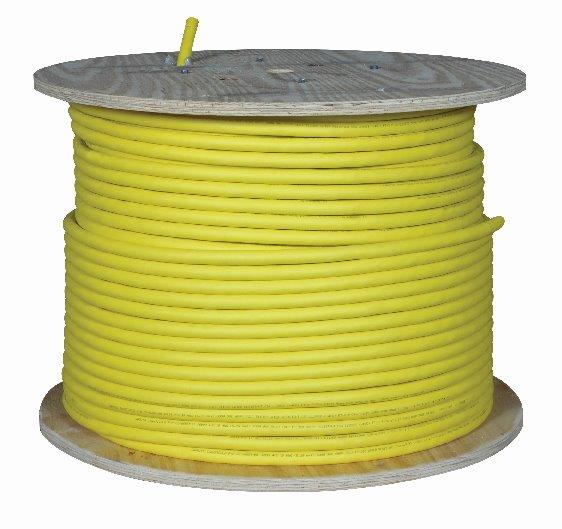

Marine graded, yellow power cable on a reel of 1020 ft (310,9 mtr), cable size 11/4 AWG (4 x 4,17mm2).
Price
$2,719.68
<p>Product Details</p>
SIZE: 11 AWG
AMBIENT TEMPERATURE: -46°C TO 90°C
NO. OF CONDUCTORS: 4
MAXIMUM VOLTAGE: 600V
MAXIMUM CURRENT: 23A
NO. STRANDS H59 X SIZE STDS.: 82 X 30 AWG
CONDUCTOR INSULATION THICKNESS MIN.: 1.143 mm
CONDUCTOR INSULATION MATERIAL: ETHYLENE PROPYLENE DIENE MONOMER (EPDM)
JACKET THICKNESS AVERAGE: 1.524mm
JACKET MATERIAL: CHLORINATED POLYETHYLENE (CPE) YELLOW
NOMINAL CABLE OUTER DIAMETER: 15.24 ± 0.254 mm
CABLE LENGTH: 1020 FT (310.896m)
VERTICAL FLAMMABILITY RATING: VW-1
HORIZONTAL FLAMMABILITY RATING: FT-2
AMBIENT TEMPERATURE: -46°C TO 90°C
NO. OF CONDUCTORS: 4
MAXIMUM VOLTAGE: 600V
MAXIMUM CURRENT: 23A
NO. STRANDS H59 X SIZE STDS.: 82 X 30 AWG
CONDUCTOR INSULATION THICKNESS MIN.: 1.143 mm
CONDUCTOR INSULATION MATERIAL: ETHYLENE PROPYLENE DIENE MONOMER (EPDM)
JACKET THICKNESS AVERAGE: 1.524mm
JACKET MATERIAL: CHLORINATED POLYETHYLENE (CPE) YELLOW
NOMINAL CABLE OUTER DIAMETER: 15.24 ± 0.254 mm
CABLE LENGTH: 1020 FT (310.896m)
VERTICAL FLAMMABILITY RATING: VW-1
HORIZONTAL FLAMMABILITY RATING: FT-2
