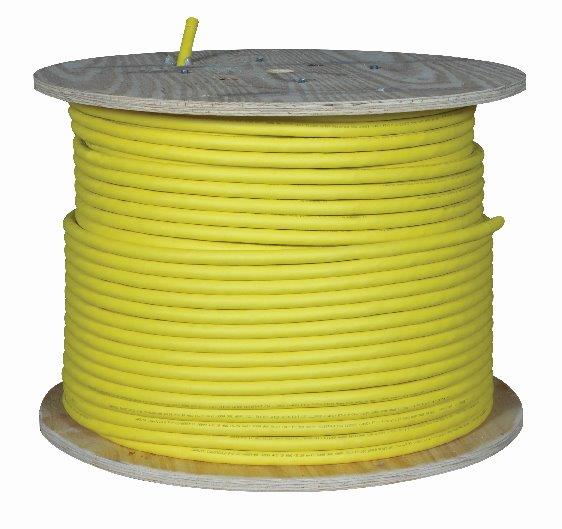

CABLE, 10/4 GAUGE (1020FT)
CABLE, 10/4 GAUGE (1020FT)
SKU
22-66654-20
UOM
EA
10 AWG yellow power cable that is UL listed and meets IEC 60332 - 1 -2 flame test. Good chemical resistance and high resistance against environmental factors (ozone, UV, humidity, water, salt, etc.)
Price
$2,828.12
<p>Product Details</p>
SIZE: 10 AWG
AMBIENT TEMPERATURE: -40°C TO 90°C
NO. OF CONDUCTORS: 4
MAXIMUM VOLTAGE: 600V
MAXIMUM CURRENT: 25A
NO. STRANDS X SIZE STDS.: 104 X 30 AWG
CONDUCTOR INSULATION THICKNESS MIN.: 1.143 mm
CONDUCTOR INSULATION MATERIAL: ETHYLENE PROPYLENE DIENE MONOMER (EPDM)"
JACKET THICKNESS AVERAGE: 2.413mm
JACKET MATERIAL: CHLORINATED POLYETHYLENE (CPE) YELLOW
NOMINAL CABLE OUTER DIAMETER: 17.78/ 19.685 mm
CABLE LENGTH: 1020 FT (310.896m)
VERTICAL FLAMMABILITY RATING: VW-1
HORIZONTAL FLAMMABILITY RATING: FT-2
AMBIENT TEMPERATURE: -40°C TO 90°C
NO. OF CONDUCTORS: 4
MAXIMUM VOLTAGE: 600V
MAXIMUM CURRENT: 25A
NO. STRANDS X SIZE STDS.: 104 X 30 AWG
CONDUCTOR INSULATION THICKNESS MIN.: 1.143 mm
CONDUCTOR INSULATION MATERIAL: ETHYLENE PROPYLENE DIENE MONOMER (EPDM)"
JACKET THICKNESS AVERAGE: 2.413mm
JACKET MATERIAL: CHLORINATED POLYETHYLENE (CPE) YELLOW
NOMINAL CABLE OUTER DIAMETER: 17.78/ 19.685 mm
CABLE LENGTH: 1020 FT (310.896m)
VERTICAL FLAMMABILITY RATING: VW-1
HORIZONTAL FLAMMABILITY RATING: FT-2
