TRANSDUCER, KIT
TRANSDUCER, KIT
SKU
76-00816-00
UOM
EA

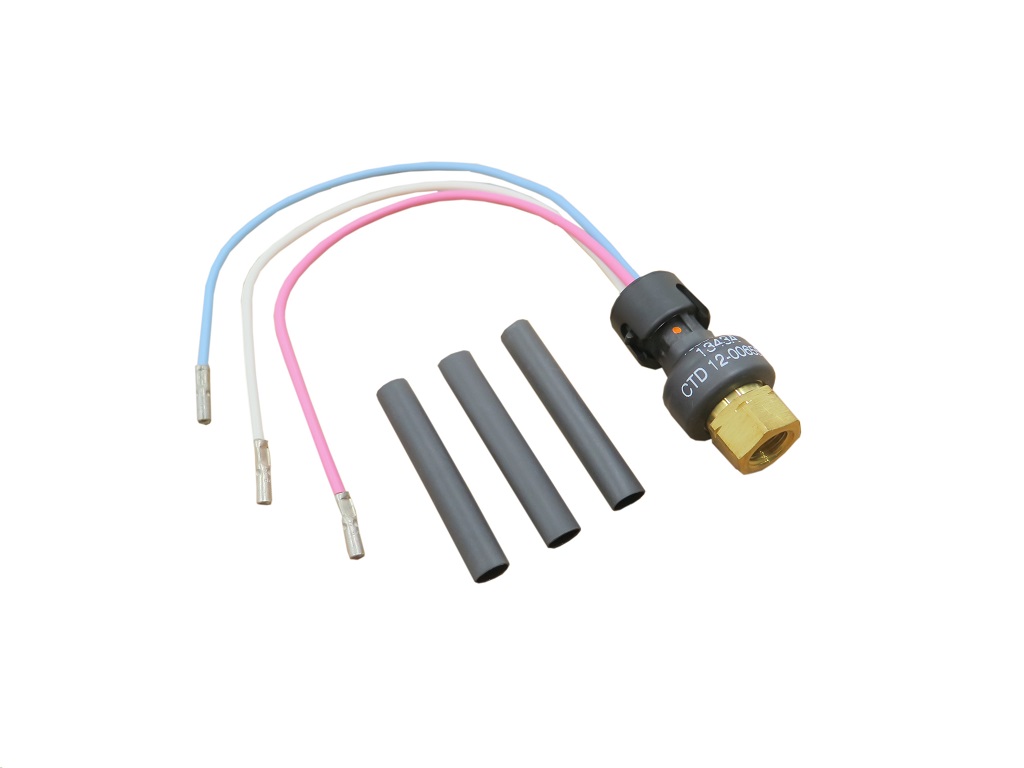

Service kit for transducer, comes with installation instructions, wire harness, heat shrinks and the transducer.
Price
$221.46
<p>Product Details</p>
TYPE: 5 VDC PRESSURE TRANSDUCER, CAPACITIVE SENSING ELEMENT
SUPPLY VOLTAGE: 4.5 - 5.5 VDC (5 VDC NOMINAL)
SUPPLY CURRENT: 8 MA MAX
TEMPERATURE: -32°C TO 135°C (OPERATING)
OUTPUT LOAD: PULL DOWN 10K
OVER-VOLTAGE: WILL WITHSTAND 16.5V
REVERSE VOLTAGE: WILL WITHSTAND 14.0V
ESD CAPABILITY: 25KV
EMC CAPABILITY (1GHZ): 100-200 V/M
OUTPUT VOLTAGE HIGH RAIL: 4.80 ± 0.05 VDC
MIN. BURST PRESSURE AS PER UL1995 REQ: 650 PSIG
WIRE: 22 AWG. U.L STYLE 1569, PVC INSULATION, TINNED COPPER 105°C, 300V
STRANDING: 7 STRANDS X 30 AWG
SUPPLY VOLTAGE: 4.5 - 5.5 VDC (5 VDC NOMINAL)
SUPPLY CURRENT: 8 MA MAX
TEMPERATURE: -32°C TO 135°C (OPERATING)
OUTPUT LOAD: PULL DOWN 10K
OVER-VOLTAGE: WILL WITHSTAND 16.5V
REVERSE VOLTAGE: WILL WITHSTAND 14.0V
ESD CAPABILITY: 25KV
EMC CAPABILITY (1GHZ): 100-200 V/M
OUTPUT VOLTAGE HIGH RAIL: 4.80 ± 0.05 VDC
MIN. BURST PRESSURE AS PER UL1995 REQ: 650 PSIG
WIRE: 22 AWG. U.L STYLE 1569, PVC INSULATION, TINNED COPPER 105°C, 300V
STRANDING: 7 STRANDS X 30 AWG
